How to Deal With Tiles of Different Thicknesses

February 12, 2021

How to Deal With Tiles of Different Thicknesses

So how do you get an even surface when using tiles of different thicknesses? A customer recently posed this question to us. She wants to create a mosaic, similar to our round mosaic, on the tables pictured below.

"I have bought these tables to tile up but will need to fill it with material first before gluing the tiles because I want the tabletop to show the tiles at the same level as the top of the rim. Do you have any recommendations?"



This is a common question as tiles vary in thickness. It's not a problem when making a mural, pot or decorative piece, but is challenging when creating a tabletop, which requires a flat surface.

There are two techniques you can use to overcome this problem.

Technique 1:

This technique uses the direct method of mosaics, adhering your pieces directly onto the surface, and different adhesives to 'build-up' the thickness of your tiles/tesserae.

Steps:

1. Select your tiles and tesserae and separate them into the different thicknesses.



How to get a smooth mosaic surface

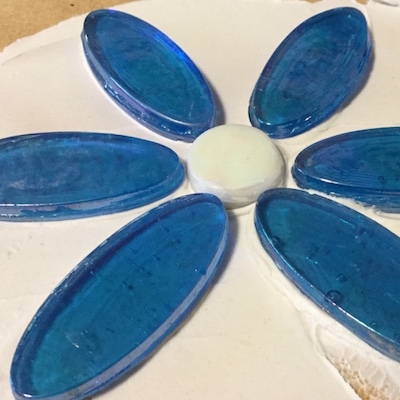

2. Lay your thickest tiles first, these will be used as your guide.



Laying tiles in cement based adhesive



3. The thinner pieces are then built up in height using cement-based adhesive. Butter the tile's back with the cement-based adhesive and pressed down onto the mosaic surface using a level (or press) to the thickest piece's height. The level can be a piece of wood or tile. It should be straight and slightly larger than the area you are working on. Apply moderate pressure to the level to press the pieces into the adhesive to the thickest piece's height. How much cement-based adhesive do I apply to the back of the tile? This will involve a bit of trial and error, too much adhesive and it will ooze out the sides requiring a clean up (with a small tool). Too little and the piece won't be correctly applied, requiring you to re-adhere the piece.

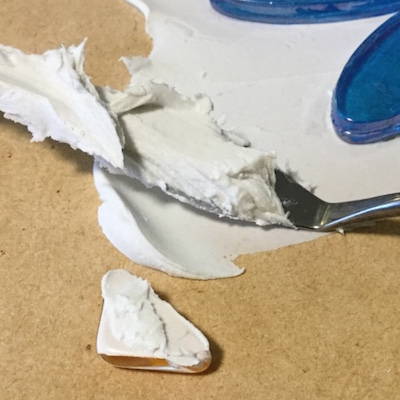

buttering the backs of the tiles

Buttering the back of the tile



Pressing the tiles down

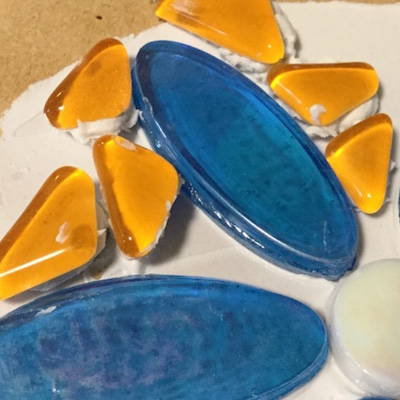

Tiles ready to be pressed down

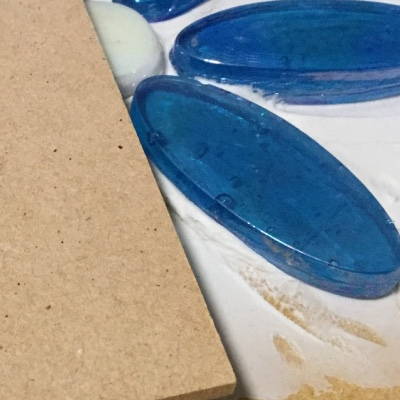

Press tiles down with a piece of MDF

Press tiles down with a piece of MDF

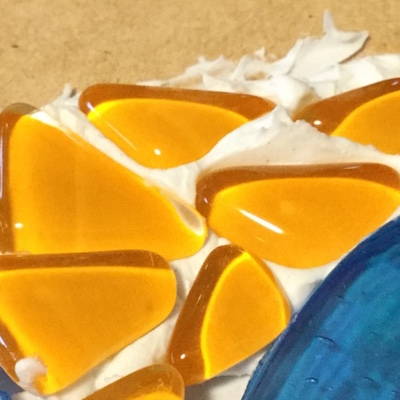

Be careful not to use too much cement based adhesive

Be careful not to use too much cement based adhesive

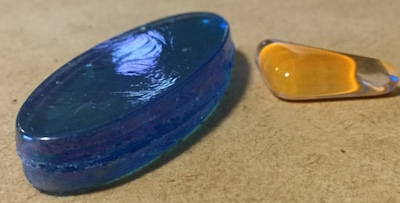

This example uses tiles of two different thicknesses, 4 mm and 6 mm.

Technique 2:

The second technique is the indirect method of mosaics. For detailed instructions on this method click here to go to our 'How To' article.
